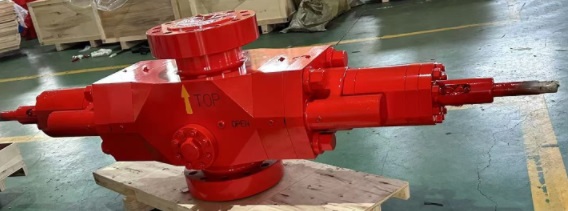

7 11 13 10K single Ram BOP

Product Introduction
The pressure -bearing and pressure controlling parts are made from forged, the chamber of body appear the oval on the longitudinal sectionof vertical piston rod. Use ram to open and close by the hydraulic oytinder drive the piston rod The movement of bonnet is linear type, themovement of bonnet is controlled by two hydraulic cylinde, it is designed the auto sand -cleaning structure on the body. On theintermediate fange, design the secondary seal unit, under the emergency case,if it is observed the fuid fow out by viewport,it can injectthe grease urgently. The type U BOPs have sold to North America, South Asia and got good quality feedback
Feature
Pressure bearing parts and pressure-controlling parts are forged. The structure of these parts are densified and has high strength,whichensures that they are used more safely and reliably.
The ram chamber is oval cross-section, which can reduce the stress of body and increase the bearing capacity of body.Open the bonnet assembly to change ram by oil pressure.It can reduce the labor intensity of employee and improve the workingefficiency.
Shear ram is equipped with auxiliary hydraulic cylinder, which has no impact on function but smaller volume. It is also equipped with bighydraulic cylinder, which has simple, safe and reliable structure.For all position of high sulfur resistant BOP which are contacting wel fuid are overlaid with high nickel base alloy, they can achieve theeffect of H2S resistance. (according to the remand of clients)The company is able to manufacture completed series of type U BOP and parts.

The parts of BOP have strong interchangeability.
