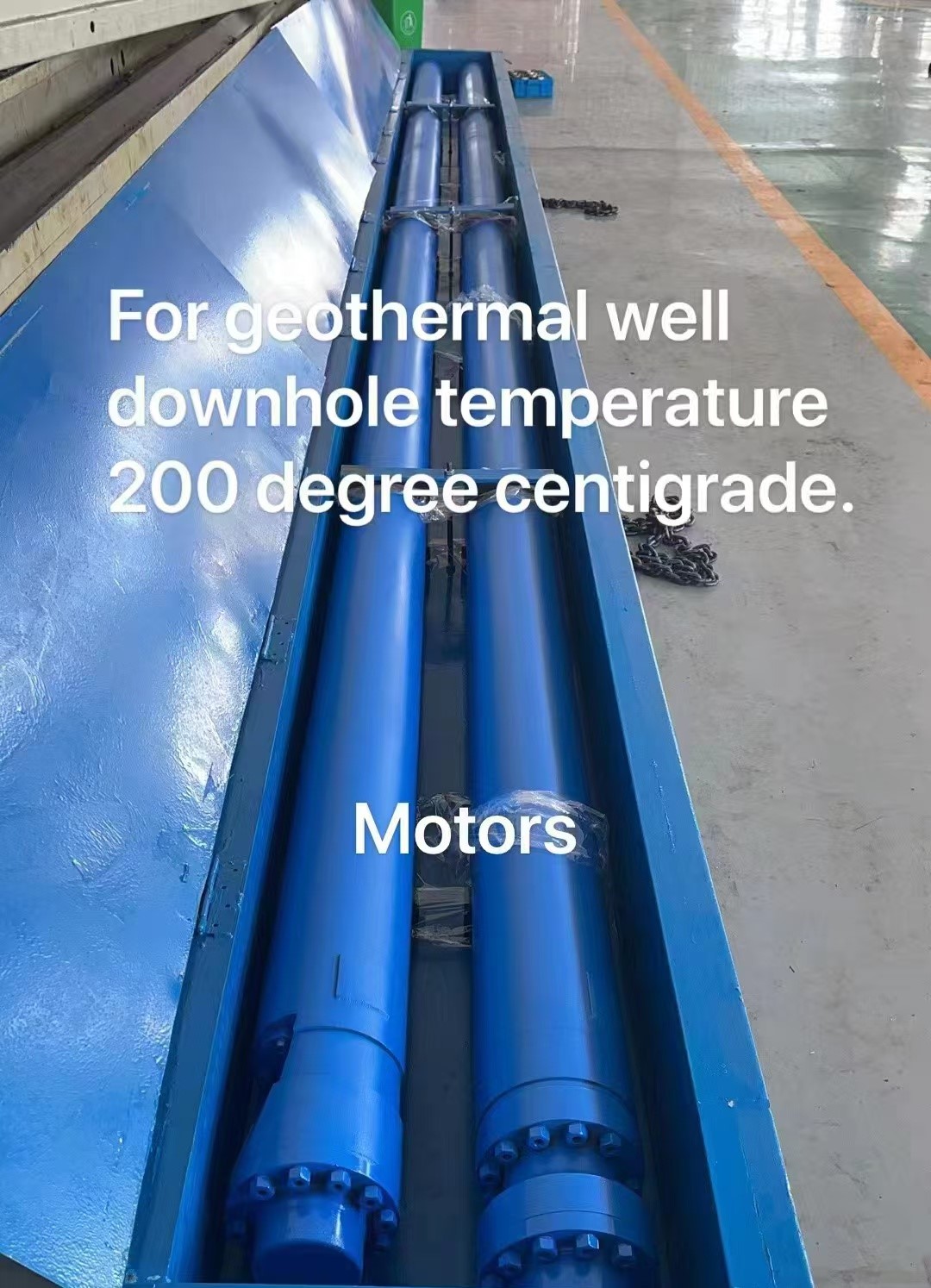

ESP Pump for operation in geothermal hot water of up to 200 celsius temperature
ESP Pump for operation in geothermal hot water of up to 200 celsius temperature mad in China Cangzhou Fengliang Petroleum Machinery Co.,Ltd
The VSD control panel is controlling and protecting equipment specially designed to
supply the AC power for the ESP. Its function is to protect ESP System when short circuit.
under load, overload, overvoltage, phase loss or current unbalance happens.
bilities; control well drawdown; adjust ESPs to changing well conditions; decrease
system voltage at start up; maximize the benefits of down-hole monitoring; and improve
system harmonics.

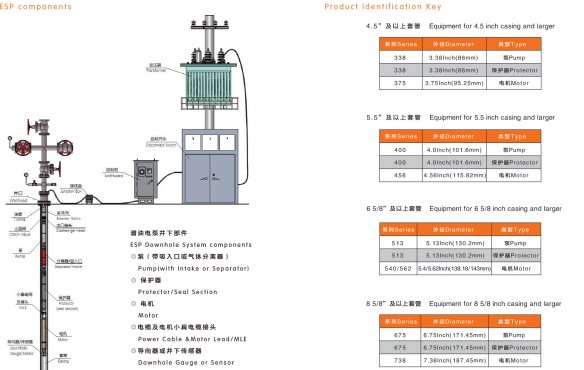

Downhole sensor of ESP is a measuring device of downhole signal, which uses multiple
sensors and signal processing circuit fixed in a sealed unit, and which is connected with the
bottom end of the submersible motor. Downhole sensor monitor the downhole pressure,
temperature, pump outlet pressure, vibration unit, unit insulation single and other single or
multiple parameters. Downhole sensor will transmit data via a three-phase submersible
cable to the ground, to achieve the protection of ESP unit and the monitoring of oil well
conditions.
We can collect and analyze the data from ESP Downhole Sensor. By these data, we can
Measure the condition of the well and the ESP units, adjust the operation of ESP, optimize
the well output, extend the ESP unit’s life and reduce the cost of production.
