ESP cable penetrator
+8613512492572
Wellhead Penetrators - Vertical Single Mandrel with 45 and 90 degree Surface Connector options
ESP pump ESP ESP-cable-penetrator-p.html target='_blank'>ESP cable penetrator artificial lift equipment
Field-proven in the harshest environments, our suite of Electrical Penetrators and Connector Systems is established as the industry preference for reliability. Our products are tested and certified to the highest standards including FM, ATEX and IECEx to name but a few.
Developed as a practical application, our interactive online training modules include video, step by step pictoral guides and multiple choice questions leading to approved certification - ensuring your team are fully equipped for optimal installation.
I can produce the ESP cable Penetrator BIW type and RMS type.

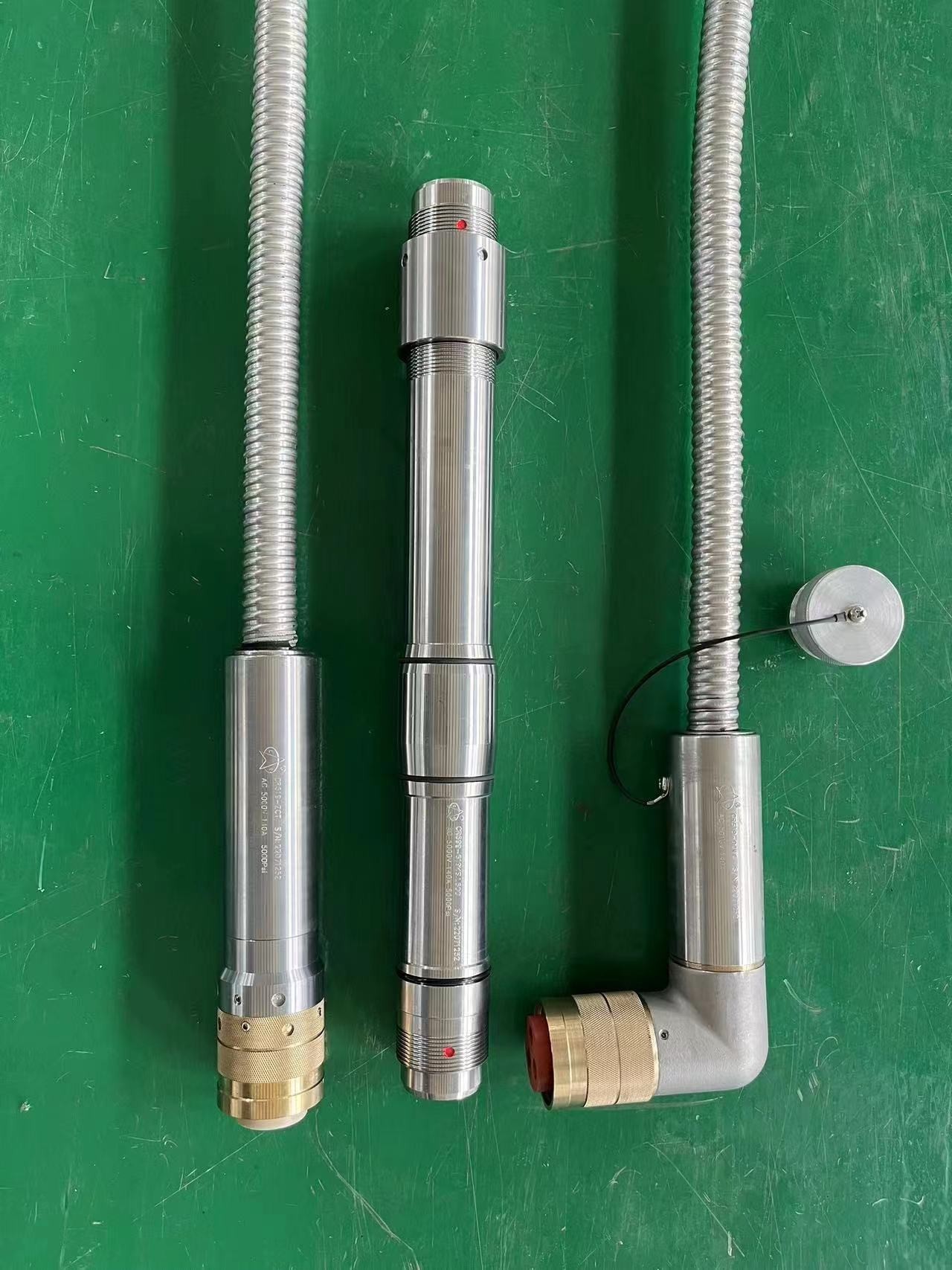

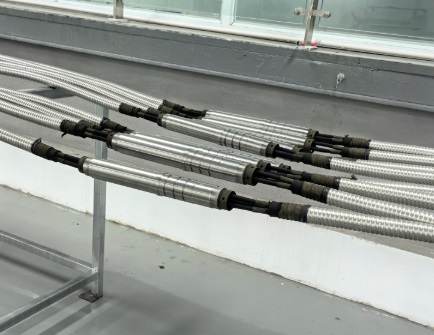

Wellhead Penetrator, Lower Penetrator, 5kV, #2 Flat Cable
with 3 -core stainless steel armored cable, with Moulded AWG#2 Flat Cable, 5000V
Wellhead penetrator
Model:CR619-508KD.L450
Rated Votage AC 5000V
Rated Current 140A
Rated Pressure:35Mpa
Downhole connector with 2# AWG flat 5000V calbe 15FT

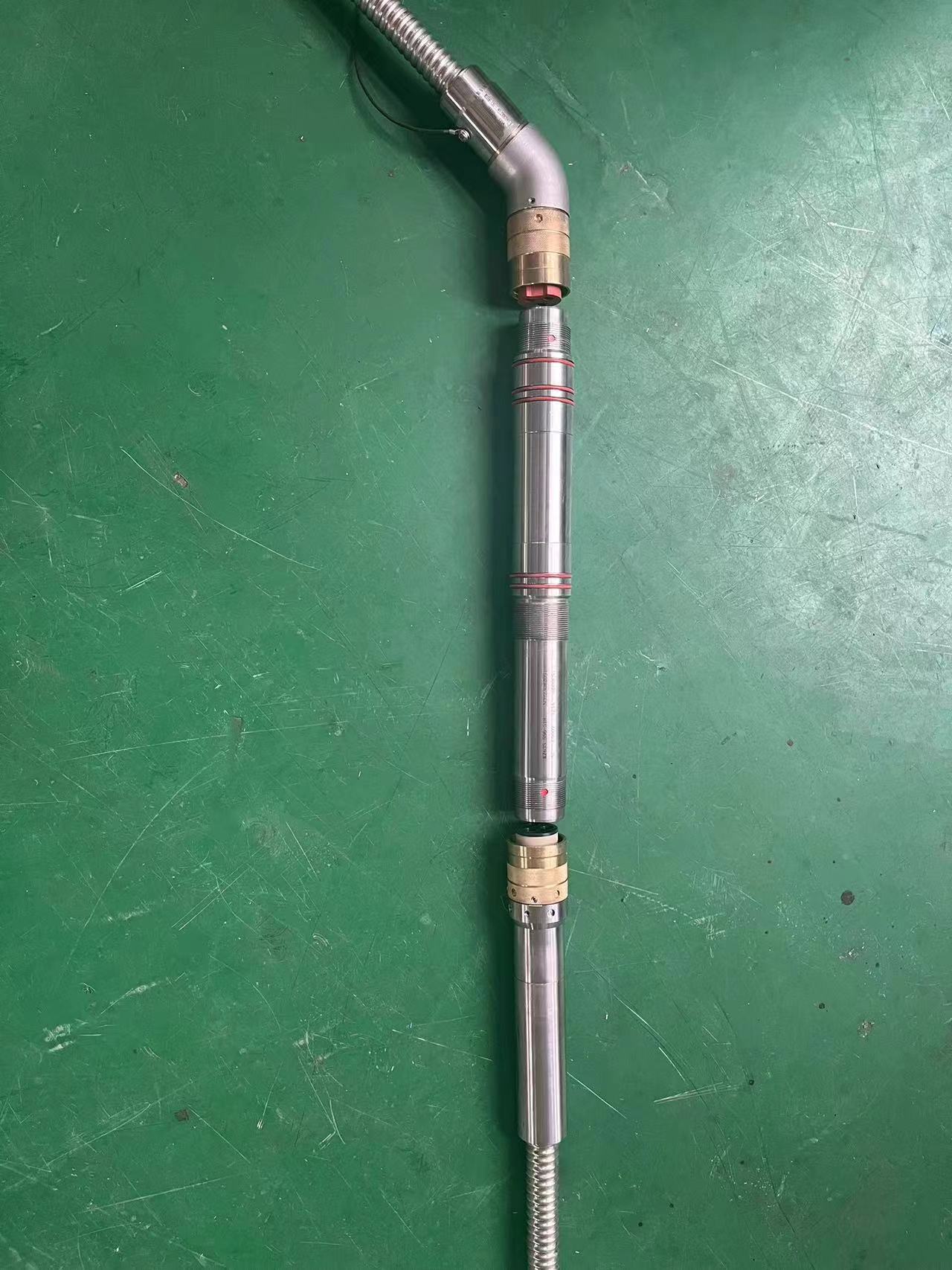

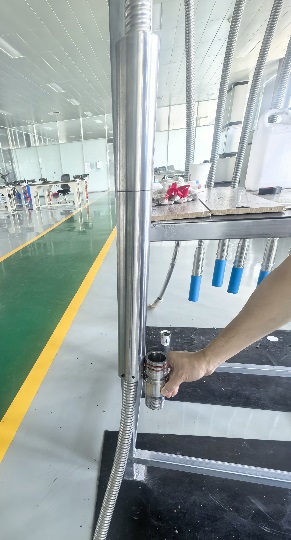

Wellhead Penetrator, 90° Surface Connector, 5kV, #1 RND Cable
3 -core Stainless Steel Armored cable, with Moulded AWG#1 Round Cable, 5000V
Wellhead penetrator
Model:CR619-508KD.L450
Rated Votage AC 5000V
Rated Current 140A
Rated Pressure:35Mpa
90° surface connector with33FT cable 1# AWG 5000V
ESP cable penetrator

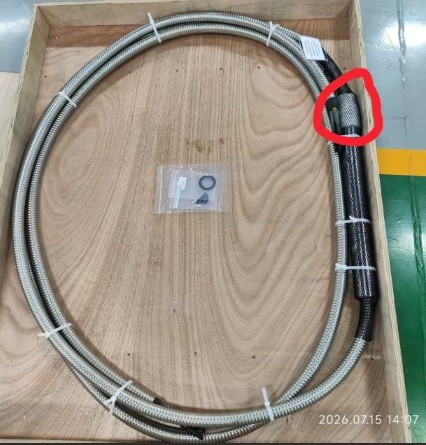

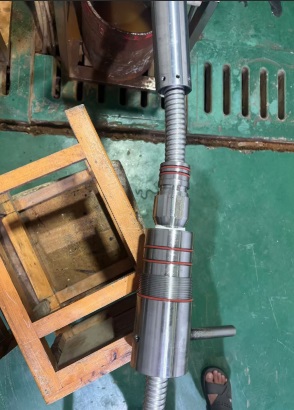

SP Packer Penetrator: Direct Molded System
1.900''NU Pin Stab in Sub (No penetrator rotation during installation)
Molded to 30ft ESP Cable (±5%), 20ft downhole, 10ft up hole,
Round, Leaded, AWG#2, EPDM, Monel Armor,
Alloy Steel NACE MRO 175 Compliant Body Material plated with Zinc or Phosphate for storage corrosion resistance.
Rated 5000PSI Hydrostatic, up to 3% H2S, up to 325°F, 5000V, 154A (amperage capacity depends on cable specifications and working conditions, please refer to cable manufacturer amperage chart)
Monel Armor is suitable for corrosive environment such as H2S
Leaded Cable is suitable for high GOR environment
Round cable better mechanical impact resistance than flat cables.
see the attachment drawing
