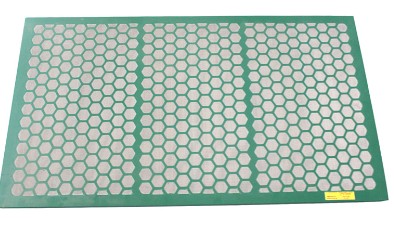

Steel Frame Shaker Screen
Fengliang supplies is able to supply various steel frame shaker screen with moderate tension, back frame greatly enhances the screen strength ensure a longer service lifetime and the endurance for drilling fluids flushing.
- Wedge blocks for fasten the screen panels which makes replacement of damaged screen easier and time saving.
- Excellent rubber strip seal glue technology prevents rubber sealing loose and leakage. Not all screen panels need a back rubber sealing strip.
All GN own shale shaker use steel frame type screen panels. Besides this, GN Solids America is able to provide replacement shaker screen for below some brands/shakers:
Replacement Shale Shaker Screen for MI-Swaco Moongoose / Meerkat
Replacement Shale Shaker Screen for MI-Swaco D380
Replacement Shale Shaker Screen for Brandt Cobra/ Venom
Replacement Shale Shaker Screen for Brandt VSM 300 Series
Replacement Shale Shaker Screen for FSI 5000
GN Steel Frame Replacement Shale Shaker Screen Basic Information
Replacement Shaker Screen Dimension (L×W) Approx. Weight Number of Layer Screen Material Frame Material For MI-Swaco Mongoose 1165×585mm 12 kg 2 or 3 SS304 or SS316 Carbon Steel For MI-Swaco D380 1180×712mm 14 kg 2 or 3 SS304 or SS316 Carbon Steel For NOV Brandt Cobra 635×1250mm 15.5kg 2 or 3 SS304 or SS316 Carbon Steel For Brandt VSM300 Scalping 940×676mm 12 kg 2 or 3 SS304 or SS316 Carbon Steel For Brandt VSM300 Primary 890×686mm 11 kg 2 or 3 SS304 or SS316 Carbon Steel For Brandt VSM300 Secondary 200×686mm 4.3 kg 2 or 3 SS304 or SS316 Carbon Steel For Fluids System FSI 5000 1067x737mm 2 or 3 SS304 or SS316 Carbon Steel [1]Derrick and FLC and Pyramid are trademarks of Derrick Corporation.
[2]Brandt and NOV are trademarks of National Oilwell Varco.
[3]MI-Swaco and Mongoose are trademarks of MI LLC or Schlumberger. -
