Yancheng Teda Drilling and Production Equipment Co Ltd.

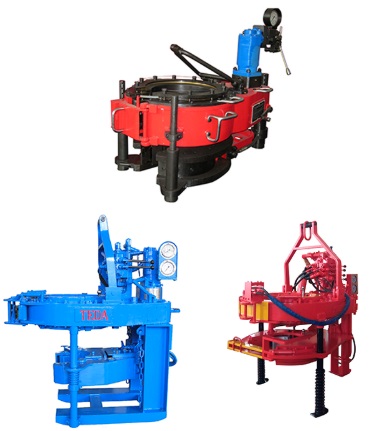

TEDA started in 2001,is located in Jianhu County of Yancheng City,one manufacturing base of National perteleum equipment.Our main products include power tong,bucking unit,spinner,Elevator,cement head,bushing,torque control system and power unit.

Latest Achicvcmcnls

This is the latest scicntific research result of Teda. which pushes the technology of power long ahead to a new landmark.

1.Applicable range 273-787.4mm (10 ³/₄″-31″)

2. Opening size 805 (31.7″)

3. Tong head rotation speed High gear speed 28 rpm

Second highest gear speed 14 rpm

Low gear speed 4 rpm

Second lowest gear speed 8 rpm

4. Maximum torque High gear 12.7 kN.m (9370 ft.lbs)

Secondary high gear 22.2 kN.m (30,200 ft.lbs)

Low gear 108.8 kN.m (80,000 ft.lbs)

Secondary low gear 46.3kN.m (33740ft.lbs)

5. Rated pressure 18MPa (2610PSI)

6. Operating flow 187.5 L/min (50 GPM)

7. External dimensions(L×W×H) 2440×1630×1380mm

8. Weight 2740kg (without spring-loaded barrel)

9. Jaw specifications:

there are 12 common specifications of jaws, with three kinds of jaws: 28″, 30″ and 31″.

The remaining sizes: 10³/″₄, 11³/₄ ″, 12³/₄ ″, 13³/₈ ″, 14³/₈ ″, 14 ³/₄ ″, 16 ″, 20 ″, 24 ″, 26 ″ are optional.

10.Torque arm 1524mm(52″)
