Description
Hydraulic Workover Rig
Workover Rig
After more than 10 years independent innovation, development and continuous improvement, our company manufacture many kinds of workover rigs including XJ250, XJ350, XJ450, XJ550, XJ650, XJ750, XJ850 types, which maximum static hook load is from 700 to 2250kN....
Tags: Truck Mounted Workover Rig | Hydraulic Workover Unit | Truck Mounted Workover Unit | Electric Work over Rig
ZJ40/2250L Skid Mounted Drilling Rig
Skid mounted drilling rig is diesel engine driven mechanical rig, the power from diesel engine will be paralleled through paralleling device to drive drawworks, rotary table and Mud Pumps. This mechanical drilling equipment is suitable for various oil, gas well drilling and exploration under 4000m at home and abroad....
Tags: Hydraulic Drilling Machinery | Land Drilling Rig | Electric and Mechanical Drilling Rig | Power Head Drilling Rig
Drilling Rig
Tianjin Dong Fang Xian Ke Petroleum Machinery Co,. Ltd. independently research and develop high origin, high technology serial modular drilling rig, including truck mounted drill rig, trailer mounted drill equipment, skid mounted drill rig....
Tags: Truck mounted Drilling Rig | Truck Mounted Drill Rig | Mechanical and Hydraulic Drill Rigs | Truck Mounted Drilling Machine
Hydraulic Workover Rig
Oil and gas well completion services for south-west Wyoming, Green River Basin. Acidizing, hydraulic fracturing, coiled tubing, nitrogen and CO2 drilling and completion services.Excel software for drilling consultants and rig supervisors, hydraulics ,well control, workovers, completions and well bore schematics. Company based in Sacramento, California.Supplier of machinery and materials including drilling and workover rigs and ancillary equipment and parts.Offers well servicing with a fleet of double drum work over rigs and swabbing units. Based in Canadian, Texas.Operating 242 rigs, mainly in Canada. Most of these are workover rigs.Provides oil and gas exploration companies with acidizing, hydraulic fracturing, coiled tubing, nitrogen and CO2 drilling and completion services. Based in Alberta, Canada.Custom design and manufacturing of well service equipment, drilling and workover rigs. Remanufactures this equipment also. Provides service at field locations.Supplier of oil and gas equipment, including drilling equipment and tools, work-over and production equipment, rigs and accessories, components and spare parts.Australia. Manufacturers range of hydraulic products for vehicle repair, body shop, and marine industries. Includes presses, transmission jacks, hoists, pumps, cylinders, and yacht rigging items.American rigging and crane hire company for hydraulic and truck cranes.Manufactures hydraulic casing hammers built specifically for rotary machines, and cable-tool drill rigs.Develops and produces rigs for surface and underground drilling, loaders and trucks, and hydraulic hammers for demolition . Production facilities located in Finland, Sweden, France, Canada, Brazil and India.Design and manufacture of electronic and hydraulic instrumentation for monitoring and controlling drilling rig operations.Provides maintenance training courses for CNC, PLC, electrical, welding, mechanical, predictive and preventive, industrial rigging, hydraulic systems and pneumatics. Thermography scanning also provided.Offer a full range of services, including full mast removal and mobile services.Providing hydraulic crane rental service to Chicago and Northern Illinois and Indiana . Cranes are provided with operators and common rigging.Provides maintenance training courses for CNC, PLC, electrical, welding, mechanical, predictive and preventive, industrial rigging, hydraulic systems and pneumatics. Thermography scanning also provided.Pacific Northwest source of wire rope, rigging, hydraulic supplies, boots, outdoorwear, safety equipment.Crane rentals and sales (hoisting and rigging) for hydraulic and crawler cranes. Procrane Sales is a distributor for Tadano cranes and parts.Design and manufacture of high pressure equipment including hand and air operated liquid and gas pumps, power packs, test rigs, hydraulic control panels and flushing units. US based (TX).
Full Hydraulic Drill Rigs
Workover Rig for Middle and Shallow Wells

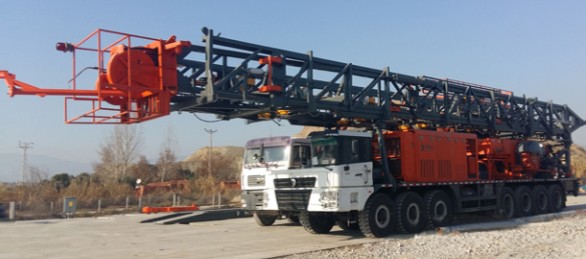

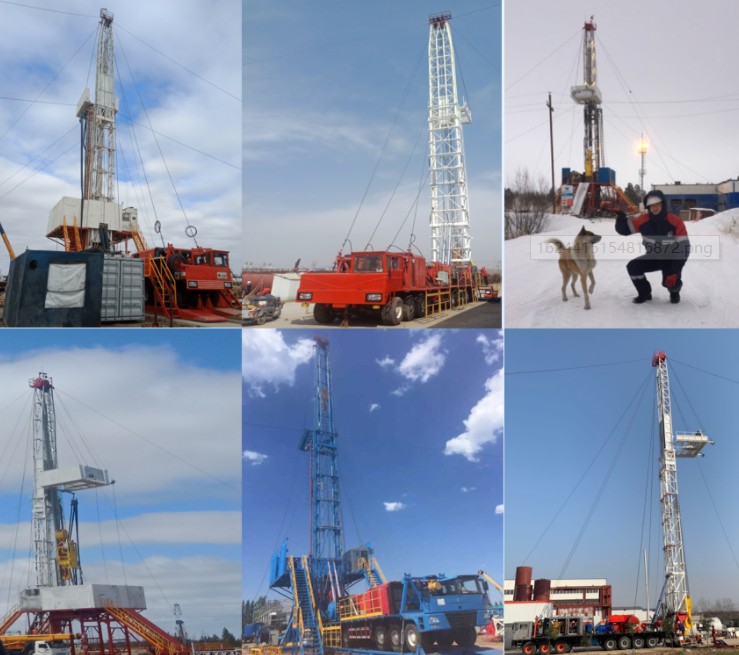

truck/trailer mounted drilling rig is mechanically and hydraulically driven. The power system, drawworks, mast, travelling system and transmission mechanism of the drilling rig are mounted on the self-propelled chassis, which improves the moving efficiency greatly. Now, Jereh truck mounted drilling rig series cover the drilling depth from 1000m to 4000m and maximum static load from 900kN to 2250kN, featuring high operation load, reliable performance, excellent off-road performance, convenient movement and low operation/moving cost, and suitable for drilling operations in shallow and middle deep wells. Besides, drilling rigs for arctic, desert and highland applications are available.
Features
Conform to API Q1, 4F, 7K and 8C Specification and API monogrammed.
The technical parameters and overall design conform to GB/T 23505 Petroleum Drilling and Workover Rigs, suitable for middle & shallow well drilling and workover operations.
Conduct strength analysis for the mast and substructure based on SAFI software.
Modular design achieves fast move and transportation.
Adopt mechanical transmission to enable simple operation and easy maintenance.
Workover Rig
After more than 10 years independent innovation, development and continuous improvement, our company manufacture many kinds of workover rigs including XJ250, XJ350, XJ450, XJ550, XJ650, XJ750, XJ850 types, which maximum static hook load is from 700 to 2250kN....
Tags: Truck Mounted Workover Rig | Hydraulic Workover Unit | Truck Mounted Workover Unit | Electric Work over Rig
ZJ40/2250L Skid Mounted Drilling Rig
Skid mounted drilling rig is diesel engine driven mechanical rig, the power from diesel engine will be paralleled through paralleling device to drive drawworks, rotary table and Mud Pumps. This mechanical drilling equipment is suitable for various oil, gas well drilling and exploration under 4000m at home and abroad....
Tags: Hydraulic Drilling Machinery | Land Drilling Rig | Electric and Mechanical Drilling Rig | Power Head Drilling Rig
Drilling Rig
Tianjin Dong Fang Xian Ke Petroleum Machinery Co,. Ltd. independently research and develop high origin, high technology serial modular drilling rig, including truck mounted drill rig, trailer mounted drill equipment, skid mounted drill rig....
Tags: Truck mounted Drilling Rig | Truck Mounted Drill Rig | Mechanical and Hydraulic Drill Rigs | Truck Mounted Drilling Machine
Hydraulic Workover Rig
Oil and gas well completion services for south-west Wyoming, Green River Basin. Acidizing, hydraulic fracturing, coiled tubing, nitrogen and CO2 drilling and completion services.Excel software for drilling consultants and rig supervisors, hydraulics ,well control, workovers, completions and well bore schematics. Company based in Sacramento, California.Supplier of machinery and materials including drilling and workover rigs and ancillary equipment and parts.Offers well servicing with a fleet of double drum work over rigs and swabbing units. Based in Canadian, Texas.Operating 242 rigs, mainly in Canada. Most of these are workover rigs.Provides oil and gas exploration companies with acidizing, hydraulic fracturing, coiled tubing, nitrogen and CO2 drilling and completion services. Based in Alberta, Canada.Custom design and manufacturing of well service equipment, drilling and workover rigs. Remanufactures this equipment also. Provides service at field locations.Supplier of oil and gas equipment, including drilling equipment and tools, work-over and production equipment, rigs and accessories, components and spare parts.Australia. Manufacturers range of hydraulic products for vehicle repair, body shop, and marine industries. Includes presses, transmission jacks, hoists, pumps, cylinders, and yacht rigging items.American rigging and crane hire company for hydraulic and truck cranes.Manufactures hydraulic casing hammers built specifically for rotary machines, and cable-tool drill rigs.Develops and produces rigs for surface and underground drilling, loaders and trucks, and hydraulic hammers for demolition . Production facilities located in Finland, Sweden, France, Canada, Brazil and India.Design and manufacture of electronic and hydraulic instrumentation for monitoring and controlling drilling rig operations.Provides maintenance training courses for CNC, PLC, electrical, welding, mechanical, predictive and preventive, industrial rigging, hydraulic systems and pneumatics. Thermography scanning also provided.Offer a full range of services, including full mast removal and mobile services.Providing hydraulic crane rental service to Chicago and Northern Illinois and Indiana . Cranes are provided with operators and common rigging.Provides maintenance training courses for CNC, PLC, electrical, welding, mechanical, predictive and preventive, industrial rigging, hydraulic systems and pneumatics. Thermography scanning also provided.Pacific Northwest source of wire rope, rigging, hydraulic supplies, boots, outdoorwear, safety equipment.Crane rentals and sales (hoisting and rigging) for hydraulic and crawler cranes. Procrane Sales is a distributor for Tadano cranes and parts.Design and manufacture of high pressure equipment including hand and air operated liquid and gas pumps, power packs, test rigs, hydraulic control panels and flushing units. US based (TX).
Full Hydraulic Drill Rigs
Workover Rig for Middle and Shallow Wells
truck/trailer mounted drilling rig is mechanically and hydraulically driven. The power system, drawworks, mast, travelling system and transmission mechanism of the drilling rig are mounted on the self-propelled chassis, which improves the moving efficiency greatly. Now, Jereh truck mounted drilling rig series cover the drilling depth from 1000m to 4000m and maximum static load from 900kN to 2250kN, featuring high operation load, reliable performance, excellent off-road performance, convenient movement and low operation/moving cost, and suitable for drilling operations in shallow and middle deep wells. Besides, drilling rigs for arctic, desert and highland applications are available.
Features
Conform to API Q1, 4F, 7K and 8C Specification and API monogrammed.
The technical parameters and overall design conform to GB/T 23505 Petroleum Drilling and Workover Rigs, suitable for middle & shallow well drilling and workover operations.
Conduct strength analysis for the mast and substructure based on SAFI software.
Modular design achieves fast move and transportation.
Adopt mechanical transmission to enable simple operation and easy maintenance.
Special off-road chassis extends service life.
Specifications
|
Model |
ZJ10Z(T) |
ZJ15Z(T) |
ZJ20Z(T) |
ZJ30CZ(T) |
ZJ40CZ(T) |
|
|
Max. Hook Load kN(lb) |
600 |
900 |
1350 |
1800 |
2250 |
|
|
Nominal Drilling Depth m(ft) |
114 mm |
500-1000 |
800-1500 |
1200-2000 |
1600-3000 |
2500-4000 |
|
127 mm |
500-800 |
700-1400 |
1100-1800 |
1500-2500 |
2000-3200 |
|
|
Engine Power kW(hp) |
224(300) |
280(375) |
470(630) |
2×403(2×540) |
2×470(2×630) |
|
|
Drawworks Rated Power kW(hp) |
185(250) |
260(350) |
485(650) |
560(750) |
745(1000) |
|
|
Main Brake |
Belt Brake |
Belt Brake or Disc Brake |
Belt Brake or Disc Brake |
Belt Brake or Disc Brake |
Belt Brake or Disc Brake |
|
|
Lines of Travelling System |
6 |
8 |
8 |
10 |
10 |
|
|
Drilling Line Dia. mm(in) |
22(7/8) |
26(1) |
29(1 1/8) |
32(1 1/4) |
32(1 1/4) |
|
|
Travelling System Sheave OD mm(in) |
610(24) |
760(30) |
760(30) |
915(36) |
915(36) |
|
|
Mast Height m(ft) |
22(72) |
32(105) |
35(115) |
38(125) |
38(125) |
|
|
Substructure Height m(ft) |
3(10) |
3(10) |
4.5(15) |
6(20) |
6.7(22) |
|
|
Substructure Clearance Height m(ft) |
2(6.5) |
2(6.5) |
3.5(11.5) |
4.9(16) |
5.5(18) |
|
|
Rotary Table Opening mm(in) |
444.5(17 1/2) |
444.5(17 1/2) |
520.7(20 1/2) |
698.5(27 1/2) |
698.5(27 1/2) |
|
|
Mud Pump Qty. |
1 |
1 |
2 |
2 |
2 |
|
|
Mud Pump Rated Power kW(hp) |
373(500) |
373(500) |
597(800) |
597(800) |
746(1000) |
|
|
Standpipe Dia. mm(in) |
64(2 1/2) |
64(2 1/2) |
76(3) |
76(3) |
76(3) |
|
|
Standpipe Working Pressure MPa(psi) |
25(3600) |
25(3600) |
35(5000) |
35(5000) |
35(5000) |
|
|
Self-propelled Chassis |
8×4 |
8×8 or 10×8 |
12×8 |
14×8 |
14×10 |
|
|
Trailer |
- |
3-axle |
4-axle |
5-axle |
5-axle |
|
|
Remarks |
C-Dual-engine gear compound transmission; Z-Self-propelled Chassis; T-Trailer |
|||||
