1. Technical Requirements
A. The materials of the parts’ surfaces exposed to well fluid meet the requirements of NACE MR 0175.
B. The equipment can work normally, at ambient temperature and equipment temperature from +30℃ to -18℃.
The equipment can work normally by adding heating and heat insulation systems, at ambient temperature from -18℃ to -40℃ .
The equipment can withstand temporary temperature drops to -40°C with subsequent restoration of its functionality.
The hydrogen sulfide content is less than 6% vol.
C. Mechanical Characteristics
n Pressure-bearing parts meet the requirement of API 60K，hardness ≤HRC22；
n Chemical composition meets the requirements of API Spec 16A.
D. BOPs’ end connection type, bolts and nuts meet the requirements of API Spec 6A. The thread size of the bolts and nuts is in metric units.
E. Ring grooves and bonnet sealing grooves are lined with austenite stainless steel, meet NACE requirement.
F. Hydraulically Opening Bonnets.
G. Ram BOP is Manual Lock.
H. Shearing ram could cut off 5 "（127mm） wall Thickness—9.19 mm G-105 drill pipe with the hydraulic operating pressure is less than 21MPa, and then seals the 21MPa well pressure;
I. BOPs are completed with special tools.
J. BOPs are painted according to Manufacturer's written specification.
K. Packing of products is able to ocean shipping for long distance.
L. Name-plate’s language is English.
M. Completed with detailed technical documents.
N. Working medium: oil, mud, fluid.
3. Technical Parameters

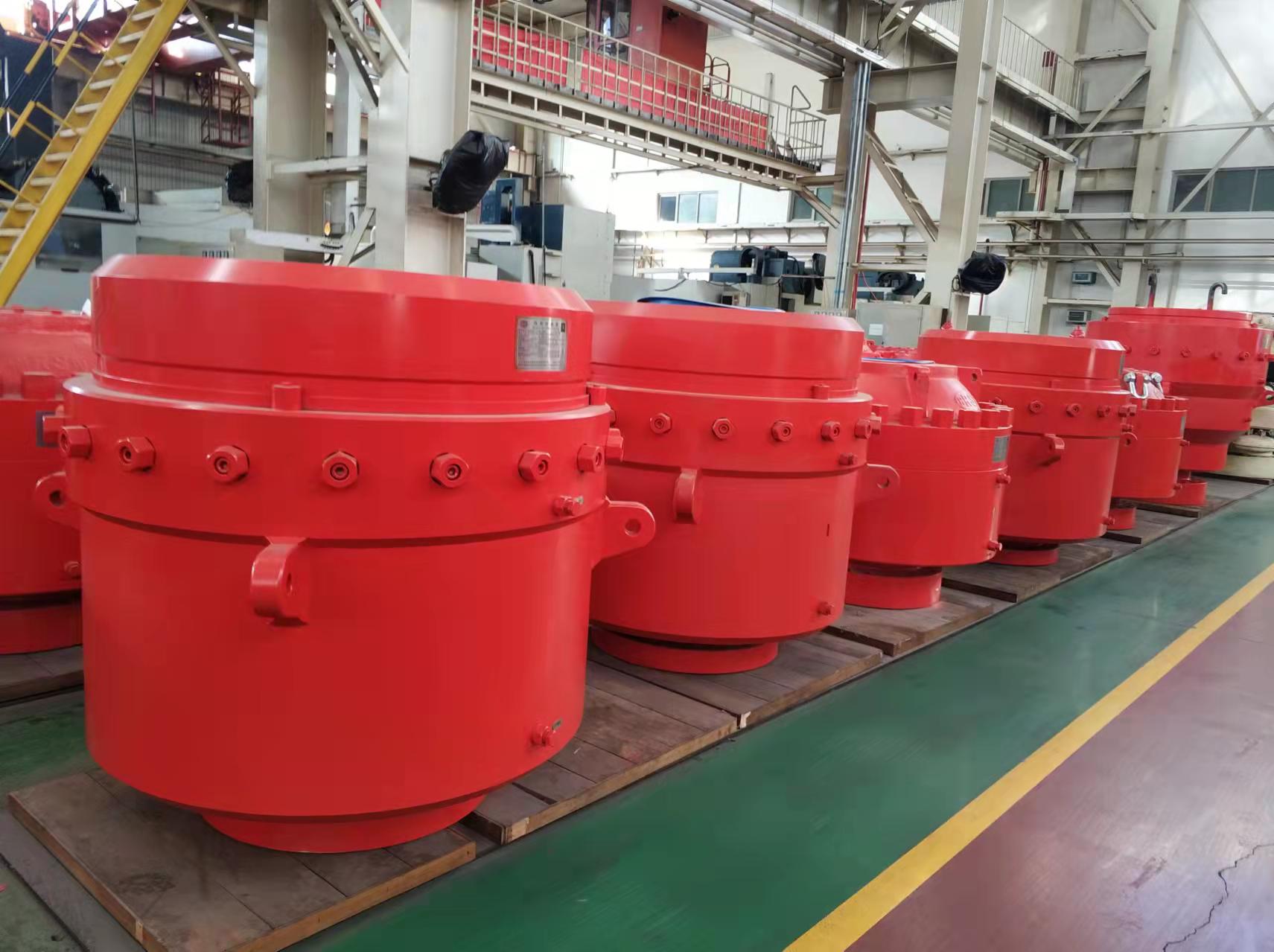

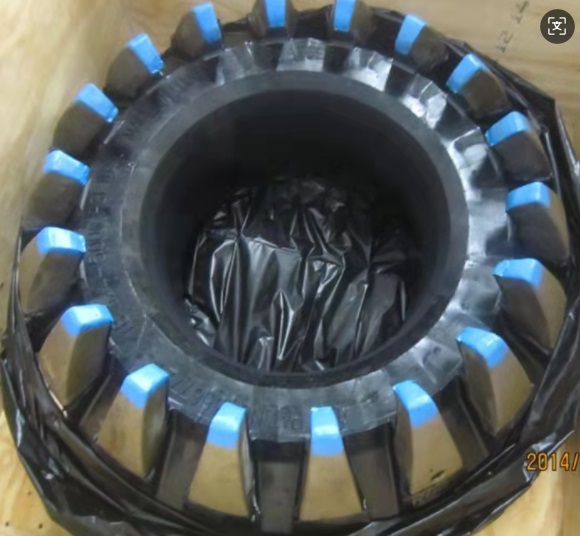

A. 18 3/4” 5000psi Annular Blowout Preventer
Bore: 476.25mm (18 3/4")
Rated Working Pressure: 34.5MPa (5000 psi)
Hydraulic operating Pressure: 8.4～10.5 MPa
Hydraulic Port Size: 1 1/2"NPT
Top Connection Type: 18 3/4″-5000psi 6BX BX163 Studded
Bottom Connection Type: 18 3/4″-5000psi 6BX BX163 Flanged
Open Volume (L): 172
Close Volume (L): 220
B. 18 3/4” 5000psi Double Ram Blowout Preventer
Bore: 476.25mm (18 3/4")
Rated Working Pressure: 34.5MPa (5000 psi)
Hydraulic operating Pressure: 8.4～10.5 MPa
Locking System: Manual
Connection Type:
Top Connection: 18 3/4″-5000psi 6BX BX163 Studded
Bottom Connection: 18 3/4″-5000psi 6BX BX163 Flanged
Side Outlets Type: 3 1/8"-5000 psi 6B R35 Studded
Qty of Side Outlet: 2/2（C/W Blind Flange）
Hydraulic Port Size: 1 "NPT （with protecting Flange）
Open Volume (L): 44
Close Volume (L): 46
Open Volume（Booster） (L): 44
Close Volume（Booster） (L): 79
C. 18 3/4” 5000psi Single Ram Blowout Preventer
Bore: 476.25mm (18 3/4")
Rated Working Pressure: 34.5MPa (5000 psi)
Hydraulic operating Pressure: 8.4～10.5 MPa
Locking System: Manual
Connection Type:
Top Connection: 18 3/4″-5000psi 6BX BX163 Studded
Bottom Connection: 18 3/4″-5000psi 6BX BX163 Flanged
Side Outlets Type: 3 1/8"-5000 psi 6B R35 Studded
Qty of Side Outlet: 1/1（C/W Blind Flange）
Hydraulic Port Size: 1 "NPT
Open Volume (L): 44
Close Volume (L): 46
D. 18 3/4” 5000psi Drilling Spool
Bore: 476.25mm (18 3/4")
Rated Working Pressure: 34.5MPa (5000 psi)
Top Connection: 18 3/4″-5000psi 6BX BX163 Flanged
Bottom Connection: 18 3/4″-5000psi 6BX BX163 Flanged
Side Outlets Type: 3 1/8"-5000 psi 6B R35 Flanged
