F-500/800/1000 Drilling Pumps
Operation and Maintenance
Manual
AH050102-00SM
AH080102-00SM

AH100102-00SM

The Service & Maintenance Manual of F-500/800/1000 Drilling Pump is a complete set of particulars
for users. It provides a great number of accurate and brief data and operation essentials used for the
operating crew, field maintenance personnel and technical service workers to refer to.
In view of definite space, it is impossible to be attentive in each and every aspect. However, strict
compliance with the operating specifications contained in the said Service & Maintenance Manual
may guarantee effective working hours of drilling pumps and prolong their service life.
All specifications and data are made on the basis of engineering design and should be observed at
the moment of maintenance and repair operations. With regard to the devices associated to F Series
Drilling Pumps, the information provided by the Manufacturers shall be applicable for their service
and maintenance.
Users are earnestly requested to put forward valuable suggestions and comments on any
imperfection in the Manual.
Drawing description Drawing No.

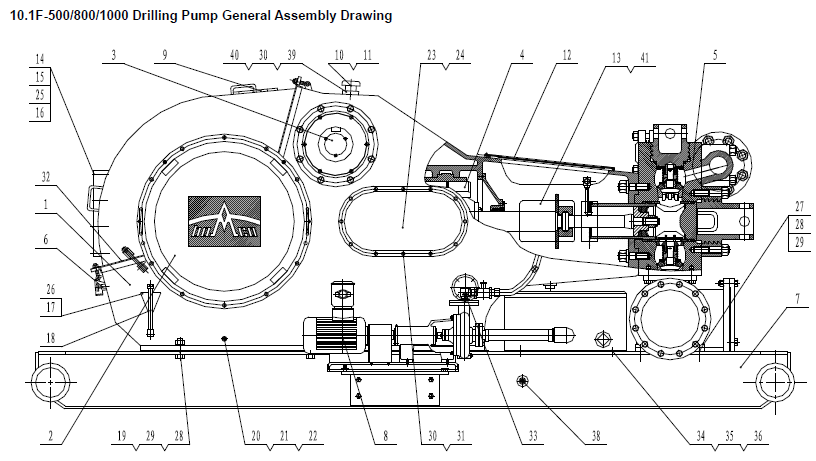

F-500/800/1000 drilling pump assembly AH05010200
AH08010200
AH10010200
F-500/800/1000 fluid end assembly AH0501020500
AH0801020500
F-500/800/1000 钻井泵使用维护手册
51
AH1001020500
F-500/800/1000discharging strainer and auxiliary pipeline AH0501011400
AH1001021100
AH1001021100
F-500 crosshead assembly AH0501020400
F-800/1000 crosshead assembly AH0801020400
AH1001020400
F-500/800/1000 pinion shaft AH0501020300
AH0801020300
AH1001020300
F-500/800/1000 crankshaft AH0501020200
AH0801020200
AH1001020200
F-500 power end assembly AH0501020600
F-800/1000 power end lubricating assembly AH0801020500
AH1001020600
F-500/800/1000 spraying pump assembly AH0501020800
AH0801020800
AH1001020800
F-500/800/1000 tools AH0801021000
AH1001021300
F-500/800/1000 spare parts AH0501021400
AH0801011100
AH1001021000
KB45/75 air chamber AK45350200
AK75350200
Air chamber charging hose assembly AH100102130100
JA-3 shear safety valve AH0000060400
