Description
29 1/2" 500psi and 30 1000psi diverter
Manufacturing Standards: API 16A,GB/T 20174
Product Applicability:
It is mainly used for shallow gas control in surface borehole.
The diverter system is a control device that guides the fluid from the well to a place have safe distance, and its purpose is to reduce the wellhead back pressure.
It is also called the diversion system.
Product Features
* The design and manufacture of the diverter comply with API 16A, and the flange specifications meet the requirements of Large Diameter Steel Flanges (ASME B16.47)
* The upper and lower connection specifications for 29 1/2"-500psi Diverter is class 300 B16/A NPS30 R95
* The upper and lower connection specifications for 30"-1000ps Diverter is class 600 B16/A NPS30 R95
* Appropriate surface treatment methods are adopted for key sealing parts, which can meet the requirements for using in highly corrosive environment
* Diverter should closed within 45s (Note: Need applicable closing unit to control)
Bore Size 30″
Rated Working Pressure 1000psi
Sulfur resistance level NACE MR0175
Performance Level Application example: Southwest of China, Kuwait, Iraq, Kazakhstan, South America
Technical parameter
Bore Size 749.3mm (29 1/2″),762mm (30″)
Rated Working Pressure 3.45MPa (500psi),6.9MPa (1000psi)
Metal material temperature level T-20/250'''
Temperature Ratings for Nonmetallic Sealing Materials Highest BGD
Sulfur resistance level NACE MR0175
Temperature Level Highest 250ºF(121ºC
Diverter Packages
Our products are based on advanced production line and testing equipment, our products are designed and manufactured according to certification of API, ISO, GOST, etc. Through efforts of Cangzhou Fengliang Petroleum Machinery Co.,Ltd staff, our products have already been exported to the USA, South America, Africa, Middle East, Russia and some other countries and regions. With super quality, reasonable price and professional service, Cangzhou Fengliang Petroleum Machinery Co.,Ltd has become assigned supplier and built strategic partnership with some coutries' national petroleum companies.
Cangzhou Fengliang Petroleum Machinery Co.,Ltd company takes "providing the most qualified products, most competitive prices and most professional service for every customer" as its mission. We are striving and aiming to be one of the most professional oilfield equipment suppliers in China. We sincerely welcome customers and friends domestic and abroad come to create a prosperous future with us.
FAQ
1. Who are you?
Cangzhou Fengliang Petroleum machinery Co., Ltd. are integrated oilfield equipment solution provider. We produce Fengliang brand BOP spare and supply RG brand F series drilling Mud Pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, Mud Pump unit .blowout preventer,top drive,sand pump,ESP cable penetrator,bearing and complete equipment depends upon technical configuration.

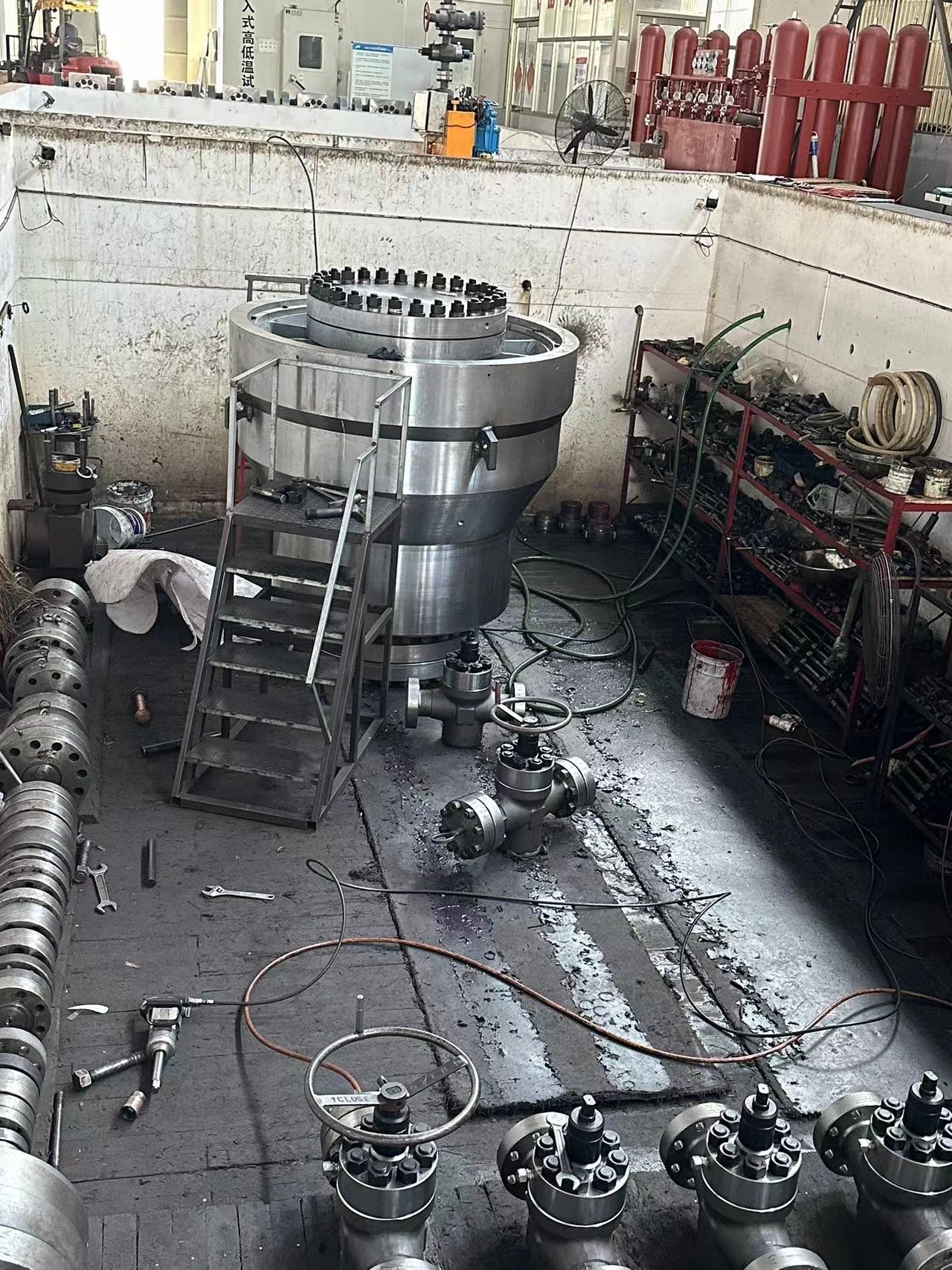

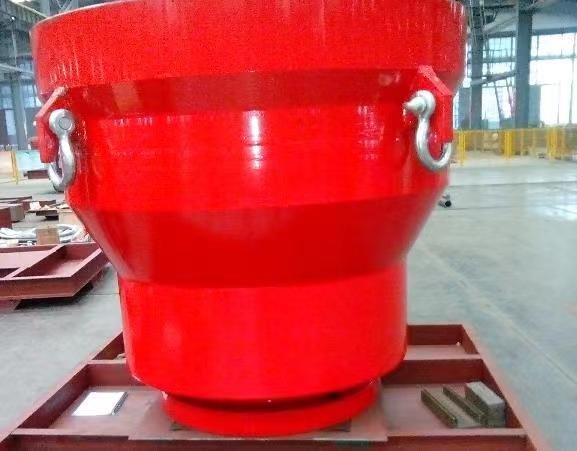

29 1/2"-500PSI Diverter Bore: 29 1/2"Working pressure: 500psi
Top connection: MSS 30" CLASS 300 R95 SST studed
Bottom connection: MSS 30" CLASS 300 R95 SST Flanged
