Description

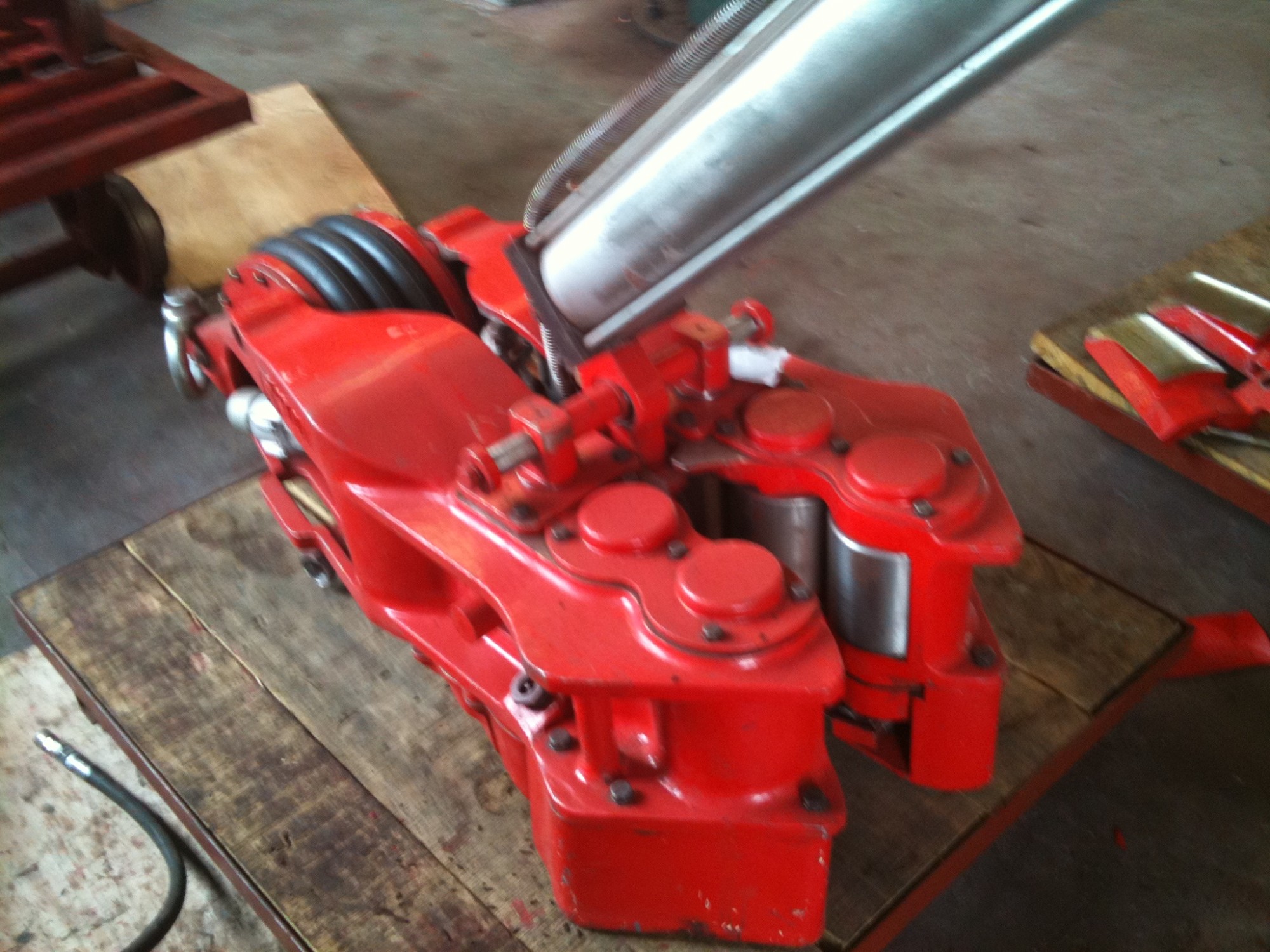

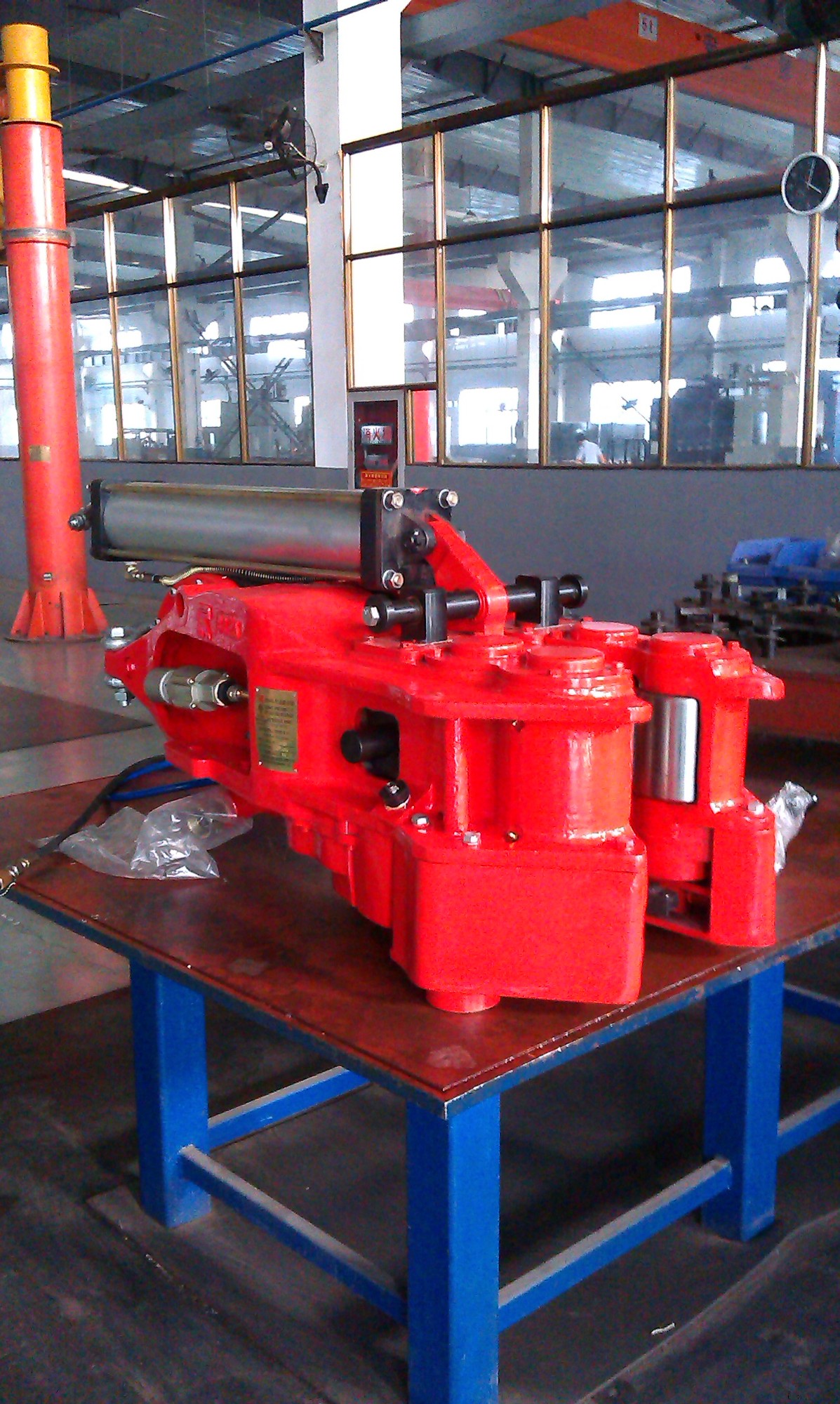

SSW40 Model pipe spinner
applicable pipe diameter:drill pipes and drill collars of 3 1/2-9 1/2"(89-241mm)
operating pressure:90-120psi(0.62-0.83Mpa)
Air consumption:250cfm(32m/min)
spinning speed:0-120r/min(5inch drill pipe)
brake torque:1100ft-Ibs(1493Nm)(5in drill pipe)
weight:850Ibs(385KG)
overall dimension:1315x570x570mm
applicable pipe diameter:drill pipes and drill collars of 3 1/2-9 1/2"(89-241mm)
operating pressure:90-120psi(0.62-0.83Mpa)
Air consumption:250cfm(32m/min)
spinning speed:0-120r/min(5inch drill pipe)
brake torque:1100ft-Ibs(1493Nm)(5in drill pipe)
weight:850Ibs(385KG)
overall dimension:1315x570x570mm
