Description
Introduction
Maximize electric submersible pump (ESP) system reliability with the Trident™ extreme-conditions Motor lead extension (MLE), an innovative, robust design that uses advanced materials to ensure long-term, dependable performance in the most high-power-demand and run-life-critical applications.
Motor lead extensions from fengliang are the final link between your electrical submersible pumping (ESP) system and its power source. The lowest section of your power string, the motor lead extension is spliced to the main power cable and is manufactured from the same materials as the cable. Tape and braid is also added to the motor lead’s construction to help prevent decompression damage that can occur in downhole cables.

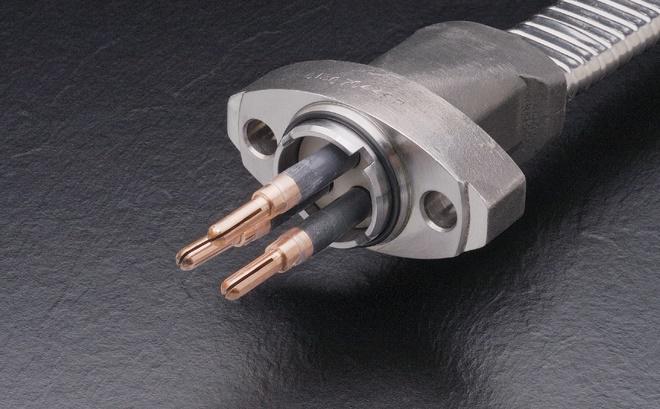

A pothead at the end of the motor lead extension serves as the plug-in for the cable and motor. Pins in the pothead securely engage the motor terminal block, and a rubber boot seals the connection to prevent any well fluid ingress.
Contact us to find a motor lead extension that will reliably meet the power needs for your ESP Systems.
|
型号Model |
线规(AWG) |
导体截面积Cross Section (mm²) |
导体根数 / 直径Number /Diameter (n/D) |
耐温等级Temperature (℃ ) |
额定电压Rated Voltage (KV) |
|
QYJYEQ |
4# |
20 |
1/5.19 |
120 204 232 260 |
3 6 |
|
|
5# |
16 |
1/4.62 |
|
|
|
|
6# |
13 |
1/4.12 |
|
|
|
|
7# |
10 |
1/3.16 |
|
|
|
QYJYF2F |
4# |
20 |
1/5.19 |
|
|
|
|
5# |
16 |
1/4.62 |
|
|
|
|
6# |
13 |
1/4.12 |
|
|
|
|
7# |
10 |
1/3.16 |
|
|
