Wash pipe P series RMIEXIHXI
Part number:5007145 for tesco top drive.

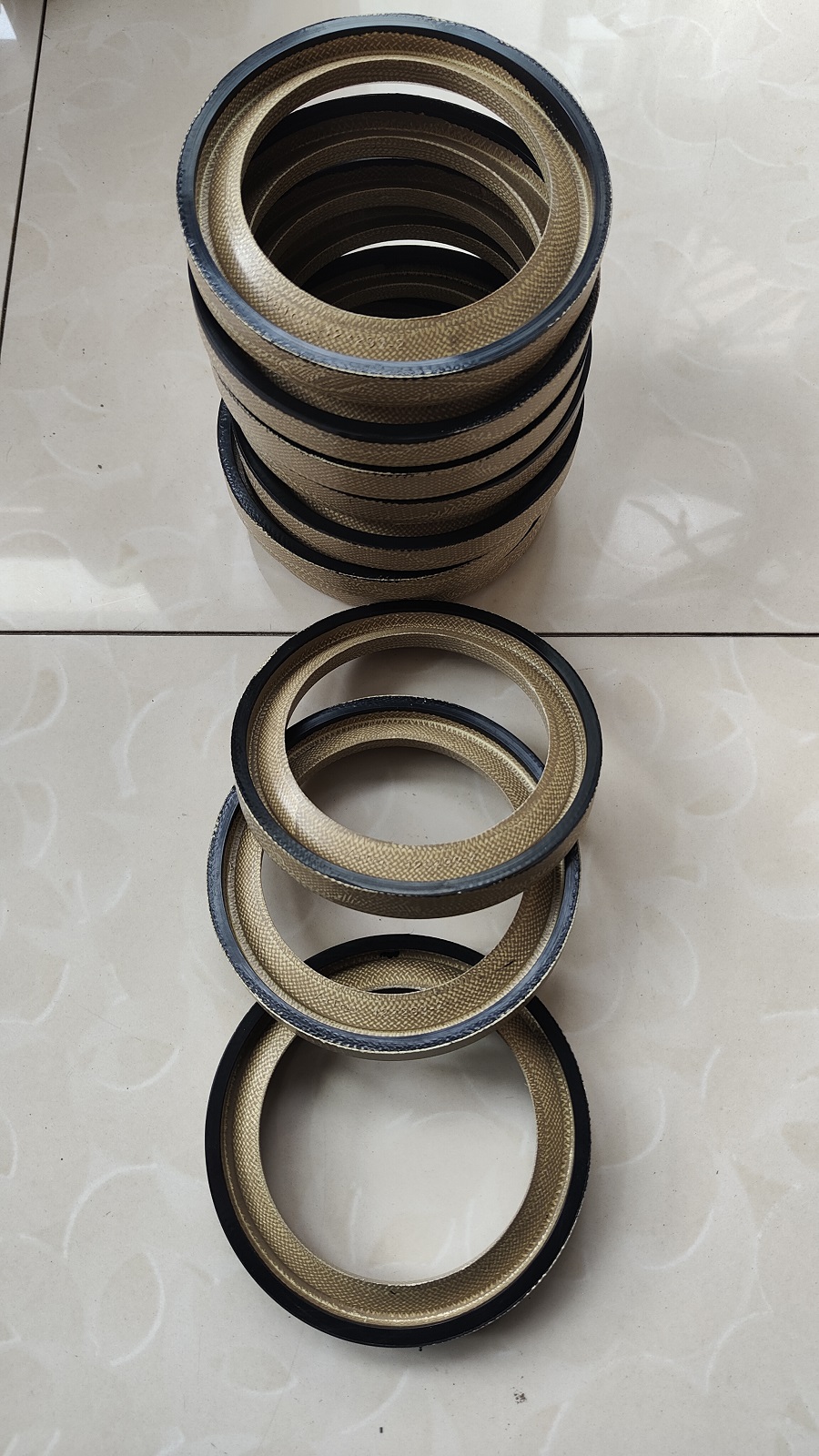

Packing seal kit STD Part:123292-2 for tesco top drive made in CHina.

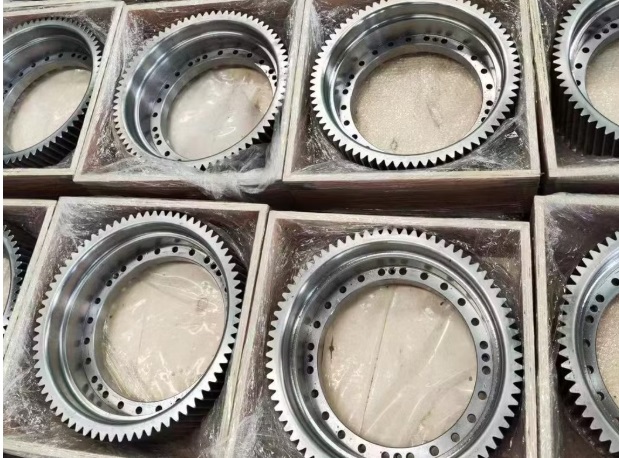

Product Name:GEAR,COMPOUND,HELICAL
Brand: VARCO,TESCO,CANRIG,TPEC,JH,HH,BPM.
Applicable models: TDS4SA, TDS8SA, TDS9SA, TDS11SA
Part number:117063,120797,10799241-002,117063-7500,92808-3,13771,1170020,1200567934,1400025331
Price and delivery: Contact us for a quotation
Function:The gears convert the high-speed, low-torque rotary motion output by the Top Drive Main Motor into low-speed,high-torque power suitable for Drilling operations.
Advantages: High strength, high precision (DIN grade 7 or above) and corrosion resistance are required to cope with the complex environment in Oil drilling and production. Modern Top Drive Gearboxs have achieved a single maintenance cycle of more than 5,000 hours, significantly reducing the risk of downtime in drilling operations.
The core function of the gears in the top drive gearbox can be divided into the following five aspects, which are analyzed based on their special working condition requirements as follows:
1, Power transmission and distribution
As the core component of power transmission, gears transmit the input power of the top drive device to the output shaft through the meshing of the main and driven gears, achieving efficient conversion of mechanical energy. In the top drive system, the multi-stage gear set can accurately allocate the power intensity required for different operation links, ensuring the continuous and stable output of the drilling rod rotation torque.
2, Speed and torque regulation
The core function of reducing speed and increasing torque is achieved by changing the gear ratio between the driving gear and the driven gear. For example, when the top drive system is drilling in hard rock formations, the gearbox increases the transmission ratio (such as 4:1) to reduce the high speed of 2000rpm input by the Motor to 500rpm operating speed, while increasing the torque to 16 times the original value. This feature perfectly matches the low-speed and high torque requirements of drilling operations.
| 88588 | GASKET,GEAR,CASE {SET OF 4 PCS} |
| 88859 | GASKET,GEAR,CASING |
| 88946 | GEAR,SPUR |
| 88948 | HOUSING,GEAR-CHANGER |
| 88949 | SHAFT,GEAR-CHANGER |
| 88956 | GASKET,GEAR-CHANGER |
| 110034 | TDS9S CMPD GEAR ALGN TOOL |
| 115040 | PINION GEAR INSTALLATION SUPPLIES |
| 116447 | GEAR,HEAD,ROTATING |
| 117603 | (MT)PUMP,LUBE,GEARBOX,ASSY,TDS9S |
| 117830 | GEAR,PINION |
| 117939 | GEAR,HELICAL,PINION |
| 119036 | GEAR,HELICAL,BULL |
| 119702 | GEAR,PINION |
| 119704 | GEAR,HELICAL,COMPOUND |
| 30124656 | SEAL,WIPER,GEAR,PH100 |
| 30151960 | SHAFT,COMPOUND GEAR, PH-100 |
| 30155743 | PUMP,GEAR,EXTERNAL |
| 30156250 | GEAR,COMPOUND 40 X 25 (MACHINED) |
| 30156256 | GEAR,PINION,SHOT PIN,PH-100 |
| 30158573 | GEAR,COMPOUND,HELICAL |
| 30158574 | GEAR,BULL,HELICAL |
| 30158575 | GEAR SET,HELICAL SPARE TDS-9/11 |
| 30173157 | GEAR,ADAPTER,LINK,ROTATING (replaces 117829) |
| 109567-G20 | TDS9S GEAR,SET |
| 10630 | IDLER GEAR SHAFT |
| 117603-1 | (MT)PUMP,LUBE,GEARBOX,ASSY,TDS9S |
| 120262-1 | SHIM,GEAR,COMPOUND,TDS10 |
| 120262-2 | SHIM,GEAR,COMPOUND,TDS10 |
| 120262-3 | SHIM,GEAR,COMPOUND,TDS10 |
| 120262-4 | SHIM,GEAR,COMPOUND,TDS10 |
| 120262-5 | SHIM,GEAR,COMPOUND,TDS10 |
| 15062 | Key, Proprietary, Driven Gear, Handling Tools |
| 30111013-1 | KIT, FILTER, GEAR-OIL (FILTER AND O-RING |
| 30111013-KIT | KIT, FILTER, GEAR-OIL (FILTER AND O-RING) |
| P614000091 | HYDRAULIC GEAR PUMP,TANDEM PUMP |
| P614000121 | PUMP,EXTERNAL GEAR,TDS-10SA |
| 10429 | GEAR,PINION,SHOT PIN,PH-100 |
| 2746 | Gear pump f/uxiliary |
| 12971 | Oil level sight glass "OIL-RITE", top drive gearbox (steel plug fitting with glass in cap), thread 2"NPT GLASS,SIGHT,2"NPT(OIL-RITE) |
| 810344 | Pin,Gearbox,Link,350400-EXI-600 |
| 820067 | Shield,Mud,Gearbox,HXIT100 |
| 820143 | Gear-Segment,Lock,Pipehandler,350-EXI-600 |
| 1120382 | HPH Kit Kit, Aux Hydraulic, EMI 400, wGear Pump |
| 1120480 | Gear Pump, 3/4", 20cc, 2400 rpm, 2500psi, keyed shaft, 1" diameter, 2-bolt SAE B flange |
| 1410142 | Sleeve,Lower,IntermediateShaft,Gearbox,EMI-400 |
| 5008176 | Mount,Lube Motor,Gearbox,500-ESI |
| 5066418 | Guard,Heat Exchanger,Gearbox,EXI |
| 5066416-1 | Bracket,HeatExchanger,Gearbox,EXI |
| 716 | Clamp,Hose,Worm-Gear,38" to 34" |
| 1198 | Driven gear NK-4186-7-S of the actuator |
| 1197 | Driven gear NK-4186-7-M of the actuator |
| 720899 | Spare parts kit for the worm gear of the pipe manipulator №720899 Tesco |
| 810275 | Drive gear (1096:1) helical spindle №810275 Tesco |
| 16406 | Nozzle,Spray,Lubrication,Gearbox/Swivel,Mk3,EMI |
| 30160623 | BEVEL GEAR |
| 30160621 | TRANSITION GEAR |
| 30160620 | IDLER GEAR |
| 30160619 | SPINNER GEAR |
| 30160605 | bearing,GEAR SLIDE |
| 11029245-ASM | Kit, S-Pipe, Gearcase, TDS-8SA/1000 7500PSI, Large Bore |
| 10066187-001 | GEARBOX LUBRICATION KIT Lubricant temp class: Standard |
| 30160623-2 | BEVEL GEAR |
| M361005967 | TRANSITION GEAR |
| 30175756-500 | CASE,8S LOWER GEAR W/LHMQUNT |
| 30175756 | CASE,8S LOWER GEAR W/RH MOUNT |
| 1410087 | Gear, Gear, Bull, Helical, 74T, MK2, Quill, EMI 400 |
| 30140058 | CAP,COMPOUND GEAR SHAFT RETAINER |
| 98294-1 | CAP,COMPOUND GEAR SHAFT |
| 120684-500 | ASSEMBLY,COMPOUND GEAR |
| 120681 | GEAR,BULL,HELICAL |
| 97994 | SLINGER,LOW GEAR OIL |
| 120691 | SHAFT,CLUSTER GEAR |
| 120685 | GEAR,CLUSTER-HELICAL |
| 30174568 | GEAR, PINION,MACHINE |
| 30151960-LT | SHAFI,COMPOUND GEAR |
| 30151960-1 | SHAFI,COMPOUND GEAR |
| 30124655-500 | GEAR ADAPTER,ROTATING LINK |
| 120682 | ASSEMBLY,SLEEVE AND PINNION GEAR |
| 30157580 | GEAR,BULL |
| 109680-500 | SUNGEAR,MOTOR |
| 108616-5 | GEAR DETECT/RH HOME POS. |
| 108616-4 | GEAR DETECT/RH HOME POS. |
| 10121799-001 | BARRIER-GEAR INDICATOR/ROTATING HEAD(24VDC) |
| 120684 | Compound Gear Assembly |
| 1410141 | Sleeve,Upper,IntermediateShaft,Gearbox,EMI-400 |
| 1410401 | Sleeve,Pinion,Gearbox,EMI-400 |
| 7962 | 029 - Bushing,QuillGear,RadialLocation,Gearbox,HMI |
| 9058 | 040 - Gear,Idler,30Tooth,Gearbox,250HMI |
| 5691 | 041 - Shaft,Gear,Idler,Gearbox,250-HMIS-475 |
| 16630 | 042 - Standoff,IdlerGear,250T,HMI |
| 3769 | 045 - Gear,Pinion,21T,2.19:1Ratio,Gearbox,HMI |
