Description
ESP pump

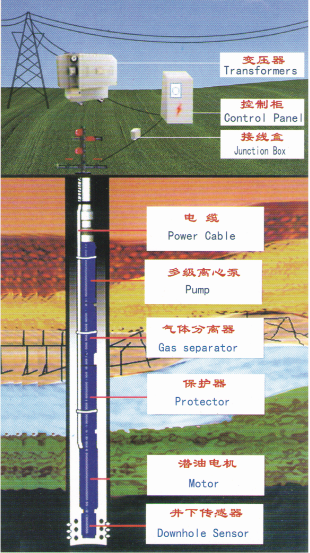

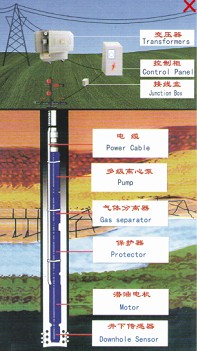

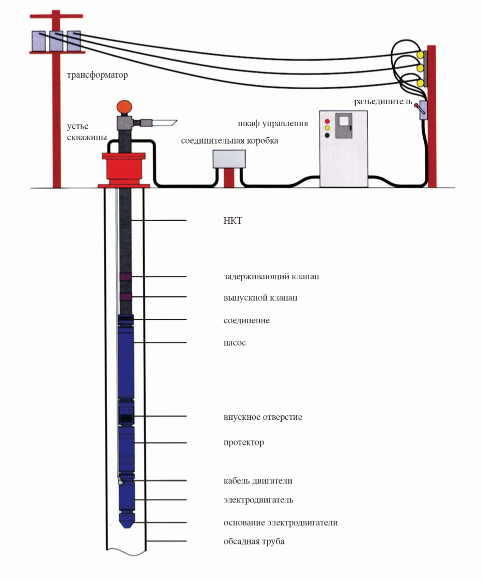

The electric submersible pumping system consists of surfave equipment,electric tansmission part and downhole equipment. the surface equipment includes transformer, control panel(orVSD),junction box,wellhead and surface cable. the electric transmission part（MLE). Doenhole equipment is the main part of the system which includes multi-stage centrifugal pump,Motor, Protector-p.html target='_blank'>Protector and gas separator.
ESP System is applicable to the production
casing of 5"、5½"、7"、8"、9 "and above.Capacity:200~25160BPD 50HZ
Head:<14760ft 50HZ
Product Name: Stamp Cable Protector
General Description: ESPCS is the most professional manufacturer for cable protectors, stable protection of ESP cable, control
line and encapsulated bundles in the wellbore. ESPCS's cable protectors use channels to shield cables or lines as they
transition across the coupling to prevent damage during installation or retrieval of completions. Our cable protectors uses a
compressive fit design to accommodate oversize or undersize tubing per API spec and securely engage the cable or lines to
the tubing.
They will have pre‐deformation to facilitate clamping ESP cable,
control lines and chemical injection lines.
Triple progressive convex pads on the channel improve gripping
characteristics without compromising cable integrity.
Two hinge pin flanges make contact with the API tubular.
Tapered wedge‐lock pin with dimples to secure the clamp from
slipping.
