Description

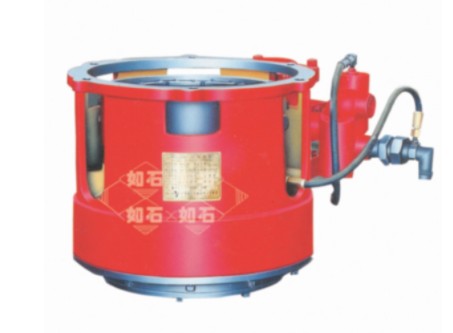

It is connected with the Faucet, uses the liquid Motor as the power, drives the central tube to drive the kelly to rotate, and cooperates with the rat hole pipe drill pipe clamping device (rat hole cl
It is connected with the Faucet, uses the liquid Motor as the power, drives the central tube to drive the kelly to rotate, and cooperates with the rat hole pipe drill pipe clamping device (rat hole clamp) to automatically complete a special device for receiving the single root, which is safe and Labor-saving, high efficiency and other advantages.
|
Model |
XSL160.2C |
XSL225.2C |
XSL315.2C |
XSL450.2C |
|
|
Air Pressure |
MPa |
0.7～0.9 |
0.7～0.9 |
0.7～0.9 |
0.7～0.9 |
|
psi |
101～130 |
101～130 |
101～130 |
101～130 |
|
|
Rated Torque |
N.m |
1300 |
1600 |
1600 |
1600 |
|
ft.lbf |
959 |
1180 |
1180 |
1180 |
|
|
Brake Torque |
N.m |
1600 |
2500 |
2500 |
2500 |
|
ft.lbf |
1180 |
1840 |
1840 |
1840 |
|
|
Rated Speed |
rpm |
80 |
70 |
70 |
70 |
|
Rotating Direction |
|
unidirectional |
Two way |
Two way |
Two way |
|
Size |
mm |
608×450×440 |
740×565×475 |
740×565×475 |
740×565×475 |
|
in |
24×18×17 |
29×21×19 |
29×21×19 |
29×21×19 |
|
|
Weight |
kg |
218 |
272 |
272 |
272 |
|
lb |
480 |
600 |
600 |
600 |
|
|
Suited For |
SL135、SL170 |
SL225 |
SL315 |
SL450 |
|

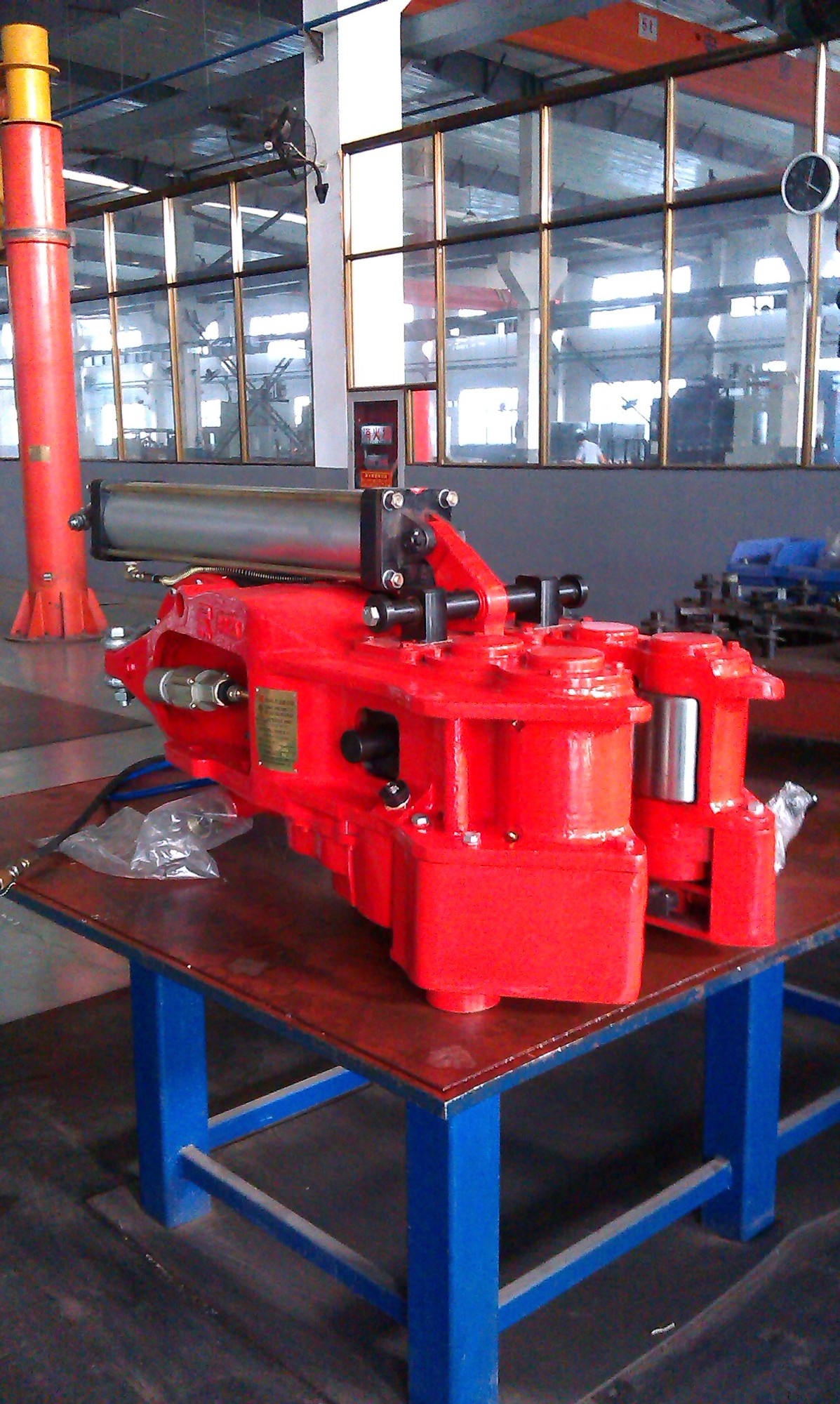

SSW40 aerodynamic rotary pliers, suitable for drill pipes and drill collars from 3.1/2 to 9.1/2. It is mainly composed of two symmetrical components, each of which is driven by an air motor to drive gears to drive the rollers to rotate. Operate the air spring to clamp the air valve so that the roller presses the drill rod; then operate the air motor valve handle to start the left and right motors. The motor drives the rESPective drive rollers to rotate through the left and right deceleration mechanisms. Due to the effect of friction torque, the drill rod rotates with it to achieve the purpose of screwing in or out of the pipe thread. For pipes of different diameters, adjusting the opening of the pliers head to adapt to it, there is no need to replace the roller, which brings great convenience to manufacturing, use, and maintenance. Pneumatic Spinner pliers is a roller-type pneumatic spinner tool. Compared with traditional chain pliers, the spinner is fast, powerful and does not slip, does not damage the advantages of drill rods, and can be used in oil and mud environments. It is safe and reliable.
The SSW40 caliper has a braking torque of 1100 ft-lbs (1490 N·m) and a fast up and down buckle speed. It replaces the previous rotating rope (spin chain) in the lifting and lowering operations, which makes the rotating buckle operation safe and reliable, reduces the labor intensity of the drilling workers, and improves the lowering and lowering speed. Because the gas motor in the spinner pliers can rotate in the forward and reverse directions, it is more beneficial to use it in the core removal operation and the handling of underground accidents.
1. Applicable pipe diameter: 31/2-91/2in (89-241mm) drill pipe and drill collar:
2. Working pressure: 90-120psi (0.62-0.83MPa);
3. Air consumption: 250cfm (32m/min);
4. Spinning speed: 0-120r/min (5in drill pipe);
5. Braking torque: 1100ft-lb (1493N·m) (5in drill pipe);
6. Weight: 850lbs (385kg);
7. Outsider size: 1315×570×570mm
