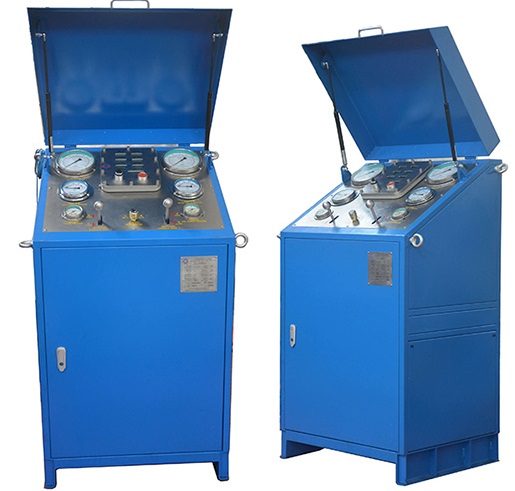

QJY70-2 CONTROL PANEL FOR CHOKE MANIFOLD

QJY70-2 CONTROL PANEL FOR CHOKE MANIFOLD

1、用途与功能特点

1. Purpose and function

气控节流管汇控制台具有操作简单、维修方便、使用寿命长等特点。它是液动节流管汇上

必备的控制装置，可以远程控制液动节流阀的开启或关闭。在控制箱盘面上可以显示出立管压

力、套管压力及液动节流阀的阀位开度。立管压力和套管压力传感器采用液体传感，具有传感

精度高、数据稳定、耐震性能好、安装方便，且满足现场防爆要求。它是成功的控制井涌、井

喷，实施油、气井压力控制技术所必备的控制装置。The choke manifold control panel, with  simple operation, convenient maintenance and long service life, is a necessary control device on hydraulic choke manifold. It can remotely control the opening or closing of the hydraulic Choke valve, and the standpipe pressure, casing pressure and the valve position span of the hydraulic Choke valve can be displayed on the panel of the control panel. The transmitters of

standpipe pressure, casing pressure and valve position adopt electric/pneumatic signals sensors, which have high sensing accuracy, high shock resistance performance, convenient installation, and meet the requirements of on-site explosion protection.Choke manifold control

panel is a necessary control device to control well kick and blowout successfully and implement the pressure control of oil and gas well.

执行标准 EXECUTION STANDARD:

API SPEC 16C - CHOKE AND KILL WELL SYSTEM SPECIFICATION

2、型号及说明

2. Model and State

QJY70-2

Q ——气控 Pneumatic control

JY ——节控箱 Hydraulic choke manifold control panel (product code)

70 ——套管、立管压力 Pressure of standpipe and casing (MPa)

2 ——控制对象个数 Number of controlled objects3、主要技术参数

3. Major technical parameters

气控节流控制台由控制箱、传感器、液压管等部件组成。控制箱由气动泵、手动泵、蓄能

器、单流阀、安全阀、截止阀、节流阀、三位五通阀、油箱等液压元件和仪表组成。Choke manifold

control panel is mainly composed of control cabinet sensor, hydraulic pressure hoses and other parts. And the control cabinet is composed of pneumatic pump, manual pump, accumulator, check valve, relief valve, safety valve, stop valve, 3-position 5-way valve, oil reservoir, digital meters and other special hydraulic component.

电源 Power supply：220VAC

气源压力 Air source pressure：0.42MPa(60.9psi) (除油、水、尘之干净气源 Clean air source out of oil, water, dust)

工作压力 Working pressure：4.2MPa(609psi)

适应温度 Ambient temperature：-20℃ ~ 50℃

液压油规格 Specification of hydraulic oil：10#(环境温度 0℃以下时应用低温抗磨液压油 For ambient temperature below 0℃, low temperature anti-wear hydraulic oil should be used)

节流阀管线 Choke valve line：M22×1.5 15m 4pcs

传感器管线 Sensor line： M16×1.5 15m 8pcs

气管线 Air source line: M16×1.5 15m 1pc

4、控制台（控制箱外壳为碳钢材质 The control box is made of carbon steel）

4. Control Panel

4.1 一个容积为 37L 油箱，材料为 Q235B,一个油标显示液位高度，一个半寸排气口。

4.1 One(1) effective volume 37L oil reservoir, complete with material Q235B, one(1) oil leveler indicating liquid level, one(1) 1/2” exhaust port.

4.2 一个公称容积 10L，工作压力为 21MPa 装有预充氮气胶囊的蓄能器。蓄能器带 ASME 认证。

4.2 One(1) 2.6 gallon(10L) capacity 21MPa(3000psi) bladder type accumulator pre-charged with nitrogen. Accumulator with ASME certification.

4.3 一个气动液压泵，气液比为 1:10，排量 160ml/冲。4.3 One(1) liquid/air 10:1 pneumatic pump, pump flowrate 160ml/stoke.

4.4 一个手压泵，排量 51ml/冲。

4.4 One(1) manual pump with flowrate 51 ml/stoke.

4.5 两个三位五通换向阀，用于控制液动阀开关，一个节流阀，用于控制液动阀开关速度。

4.5 Two(2) 3-position 5-way revers valve, is used to control the opening and closing of hydraulic valve. One(1) choke valve is used to control the speed of hydraulic valve opening and closing.

4.6 一个供气管汇包括调压阀，滤清器，过滤器，截止阀。

4.6 One(1) air supply manifold, including regulator valve, filter, stop valve.

4.7 一个安全阀，溢流压力为 4.6MPa。

4.7 One(1) Safety valve, relief pressure is 4.6Mpa.

4.8 六套仪表用于显示以下压力：

4.8 Six(6) sets meters are used to indicate the following pressure:

a.套管压力 Standpipe pressure（0-70MPa）

b.立管压力 Casing pressure

（0-70MPa）

c.阀位 1 开度 Opening of 1#valve position（0-47mm）

c.阀位 2 开度 Opening of 2#valve position（0-47mm）

d.系统压力 System pressure

（0-10 MPa）

e.气源压力 Air source pressure （0-1.6MPa）

5. 泵冲计数器

5.Pump strike counter

5.1 功能：

5.1 Function:

泵冲计数器用于测量泥浆泵在运行过程中泵冲冲次的记录及频率的计算，为司钻人员提供

准确的泥浆灌入量及速度信息，是司钻过程中必备仪表。Pump strike counter is used to Measure the record and frequency calculation of the pumping times during the operation of the Mud Pump, providing accurate mud filling amount and speed information for the driller. It is a necessary instrument in the process of driller.5.2 泵冲计数器特点：

5.2 Feature: 操作简单，维护方便。Simple operation, convenient maintenance.

5.3 技术指标 Technical index

频率显示范围 Frequency display range：

0-9 999

累计数据显示范围 Display range of accumulated data： 0-9 999

总数显示范围 Total display range：

0-999 999

测量信号通道 Measurement channel：

3 路 way

频率测量范围 Frequency measurement range：

1-300 冲次/分钟 stroke/min

分辨率 Resolution rate：

1 冲次/分钟 stroke/min

额定测量范围内精度 Accuracy within rated measuring range：≤1%

显示字符尺寸 Display character size：

6.6*12.7 mm

供电电源 Power supply：220V 50hz

环境温度 Environment temperature： -20~50°C

环境湿度 Environment humidity：

≤80％

5.4 泵冲计数器主要由控制部分以及显示部分组成：

5.4 Pump counter is mainly composed of control and display part:

1. 显示部分 Display part：

主要由泥浆泵每分钟泵冲的次数（频率）显示、泵冲累计次数显示及总次数显示。Mainly by the Mud Pump per minute pumping times (frequency) display, pump total times display and total times display.

2. 控制部分 Control part:

型泵冲计数器控制部分分为“电源”和“复位”。The control part of pump counter including “Power”

and “Reset”.

（1）“电源”控制开关是用于切断供电电源，用于控制仪器的启动和停止。

(1)“Power” control switch is used to cut off power supply and control the start and stop of the instrument.

（2）“复位”控制开关是用于初始化仪表，用于消除显示的混乱数据或者清除当前运行存储数据。

(2)“Reset”control switch is used initialize the meter to eliminate clutter displayed or to clear thecurrent running storage data.

6

接口

6 Interface

6.1 套管、立管、传感器接口

NPT 2＂外螺纹

6.1 Interface of standpipe, casing,sensor

NPT 2＂external thread

6.2 阀位传感器接口

4~φ11 孔分布中心φ82

6.2 Interface of valve position sensor

4~φ11 hole distribution center φ82

6.3 主压软管终端接口

NPT 1/2＂外螺纹

6.3 Main pressure hose terminal interface

NPT 2＂external thread

7、压力变送器 Pressure Transmitter

1 套活塞式压力变送器，传输介质为液压油，变送比为 1:4，配合节控箱的二次压力表远程

显示立管、套管压力。

One(1) set of piston pressure transmitters, the transmission medium is hydraulic oil, the transmission ratio is 1:4, with the secondary pressure gauge of the control box remote display riser and casing pressure.

8、密封件：1 套易损密封件。

8.Sealing: 1 set of sealing parts.

9、随机文件（中、英文版）

9.Document(Both in Chinese and English)

2 套文件资料（包括设备操作维护说明书、合格证、整机检验报告、零部件目录图册、装

配记录表、所有电气元件合格证及使用说明书、所有仪表合格证、本设备出厂装箱清单纸质及

电子文件）；

Two(2) sets of documents (including equipment operation and maintenance manual, qualification certificate, complete machine inspection report, parts catalog, assembly record, all electrical components qualification certificate and instruction manual, all instrument qualification certificate, the equipment packing list paper and electronic documents);
