Description

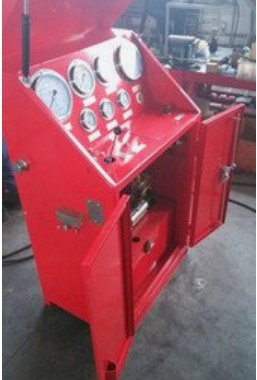

control box for choke manifold
The underbalance hydraulic control console is control device for the underbalance hydraulic choke manifold, it may control the open and close of hydraulic Choke valve remotely and may indicate the standpipe pressure, casing pipe pressure and valve position jaw opening of hydraulic Choke valve to keep borehole pressure. Thus, it may control eruption successfully. It is necessary equipment to conduct the close drilling performance.
Model and descriptions
1. QYK-35(B) Model 35 underbalance hydraulic choke manifold
2. QYK-70A(B) Model 70 underbalance hydraulic choke manifold
3. QYK-105(B) Model 105 underbalance hydraulic choke manifold
Choke manifold control console ad a control assembly in hydraulic choke manifold, can remote control the open/close of hydraulic choke valve for a long distance and the control panel can indicate the stand-pipe pressure ,casing pressure and the opening/closing condition of hydraulic choke valve as well as the pulse number and frequency of the Mud Pump if pump-pulse counter equipped, which can keep the pressure under well and is a necessary device to control kick and blowout and perform the pressure control technology in oil/gas well.
Operation BOP console
usage
It is used for the hydraulic control for underground operation BOP, which can control the open/close of the full ram BOP, half-ram BOP and annular BOP so as to remain the safety of workover BOP during the production.
remote control driller's station
Usage
In order to control the remote control panel, FKQ series control system may be also equipped with auxiliary control panel. Air-operated control is adopted in the auxiliary control panel. Via the connection between air cable and remote control panel, the remote control panel may be control by both driller's control panel and auxiliary control panel.
